EP-K44

● Multi-worker Locking
Enables multiple workers to lock at each point, perfect for collaborative tasks. Prevents accidental equipment startup, ensuring collective safety.

● Energy Switch Fit
Specially designed to attach securely to energy disconnect switches, ensuring stable energy isolation.

● Maintenance Lockout
Keeps equipment inoperative during repairs/adjustments, mechanically blocking unintended activation for safer working conditions.

● Closed-loop Unlock Control
Equipment remains unstartable until the last padlock is removed, forming a safe “lock—operate—unlock” cycle.

● Robust Structure
Features heavy-duty pry-proof steel jaw and vinyl-coated handle—anti-slip, wear-resistant, and suitable for harsh industrial environments.

Inquiry

Download

Product Description
Specification Parameters
Product Features
Related Products

Product Description

The NEW INSULATION HASP LOCKOUT is meticulously constructed from premium non - conductive nylon, a material chosen for its outstanding electrical insulation properties. This ensures maximum safety in environments where electrical hazards are a concern, preventing any risk of electrical conduction and shielding workers from potential shocks while adhering to strict safety standards.

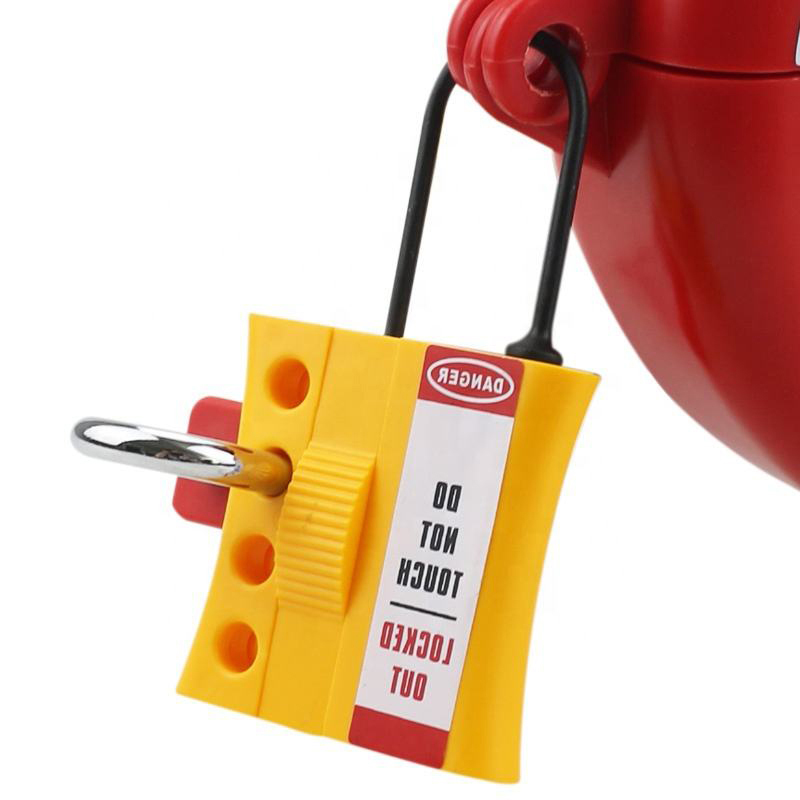

Designed for practicality and security, the hasp is inserted through the isolating point and then closed. This straightforward yet efficient mechanism guarantees that equipment or systems are firmly locked out. By permitting 4 - 6 authorized individuals to attach their own padlocks, it fosters a collaborative safety approach. Each authorized person can secure the lockout with their padlock, ensuring that no single individual can override the lockout unobserved, thereby enhancing overall safety in industrial or electrical work settings.

Part No.	Description	Qty for padlock

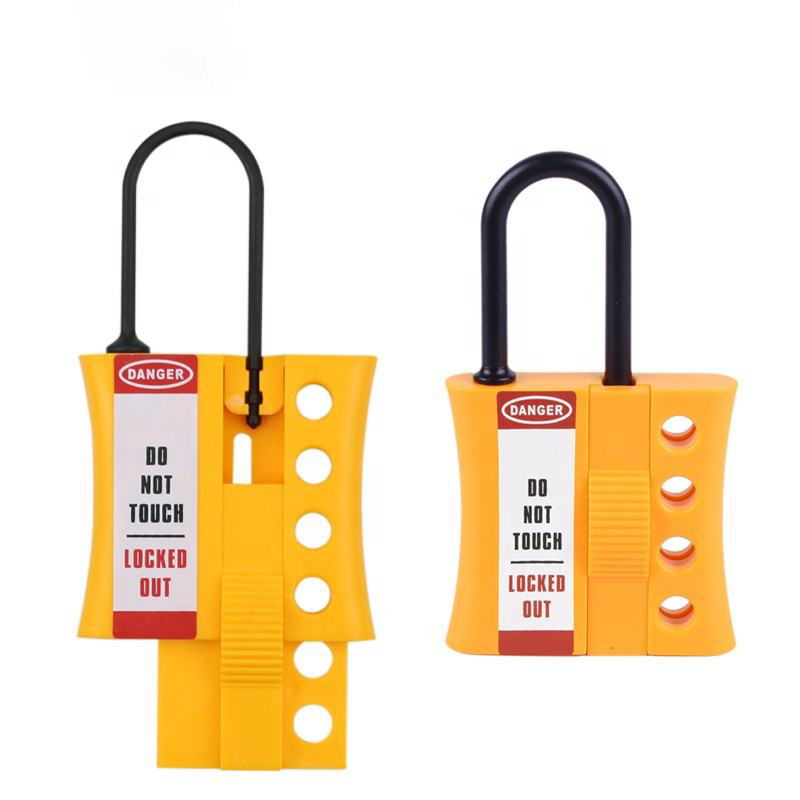

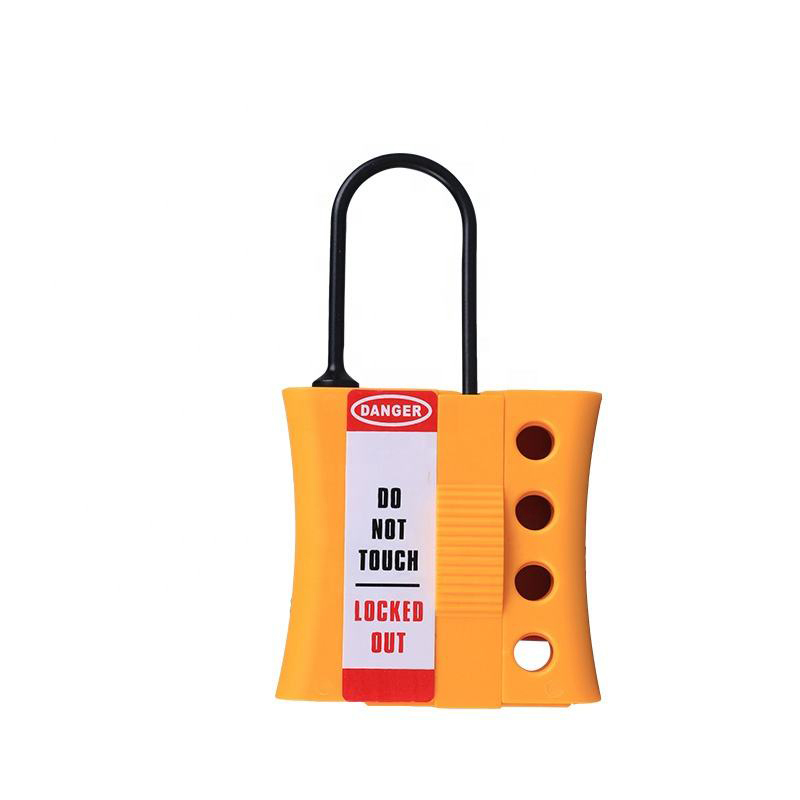

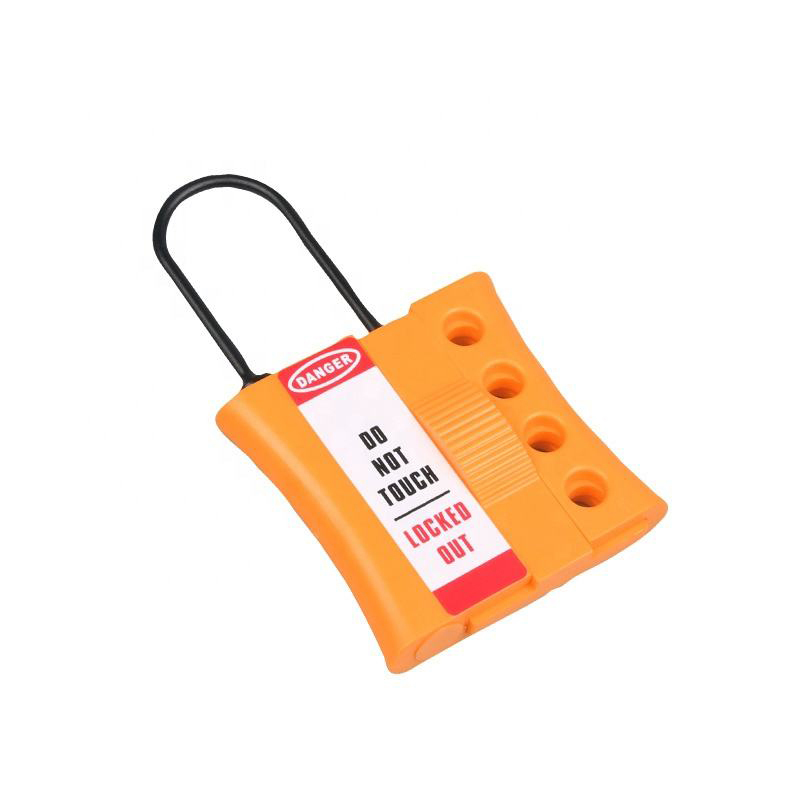

EP - K44	Nylon lockout hasp, thin shackle Dia 3mm, 61mm*107mm	4pcs
EP - K45	Nylon lockout hasp, thick shackle Dia 6mm, 61mm*107mm	4pcs

In summary, the NEW INSULATION HASP LOCKOUT combines safety, durability, and versatility, with distinct models catering to varied industrial and electrical lockout needs.

Specification Parameters

	NEW INSULATION HASP LOCKOUT	NEW INSULATION HASP LOCKOUT
In-Stock Key Code Availability	No	No
Max # of Key Codes	4	4
Custom Engraving Options	Yes	Yes
Key Retaining	NO	NO
Body Color Options	Red	Red
Electrical Protection	Nylon	Nylon

Product Features

Key management system:

KD (Keyed to Differ): This means each lock has its own unique key. No two locks in a "KD" system will open with the same key

KA (Keyed Alike): In this system, multiple locks are designed to be opened by the same key. This is useful for situations where one key needs to unlock several locks

MK (Master Key): A master key system allows one key (the "master key") to open multiple locks, while each lock also has its own individual key (often called a "subkey")

GMK (Gland Master Key): This is a specific term used in certain industries, usually related to locks that control access to particular areas or equipment. The gland master key would be part of a hierarchical system of access, potentially allowing the user to unlock specialized locks
