Breaker lockout

Dimensions: 3.5 in H x 1.5 in W x 1.5 in D

Maximum Number of Padlocks: 2

Risk Type: Electrical Risk

Color: Red, Black

Inquiry

Download

Product Description
Specification Parameters
Product Features
More Details
Related Products

Product Description

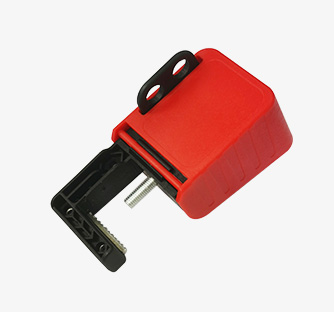

Name: Universal circuit breaker lock

Model: EP- E22A

Description: A lock specially designed and developed for the locking of circuit breaker switches with arcs

1. The patented structural design enables the bayonet to be fine-tuned within a range of 170 degrees, greatly increasing its locking stroke, and has strong universal performance, which solves the problem of arc protrusions in the switch handle groove.

2. Scope of application: switch handle thickness ≤ 25mm, switch handle width ≥ 10mm, handle height ≥ 13mm.

3. Made of reinforced nylon and stainless steel, durable, lightweight,

4. Using one-piece stainless steel teeth, the bayonet strength is higher and the clamping is more stable.

5. It can be locked by two people at most, and the hole diameter of the lock is 8mm.

Specification Parameters

Key Characteristics	Product Number	177243
	UOM	Each
	Brand Name	EPSAFE
	Country of Origin	China
	HTS Code	3926.90.9989
Dimensions	Dimensions	3.5 in H x 1.5 in W x 1.5 in D
	Height	3.5 in
	Width	1.5 in
	Depth	1.5 in
Material Characteristics	Material	Polypropylene

	Lockout Material	Fiberglass Reinforced Polyurethane
	Color	Red, Black
	Service Temperature Range F	-4°F - 176°F
	Minimum Service Temperature°F	-4°F
	Maximum Service Temperature°F	176°F
	Conductivity	No
Product Features	Application	Lockout Tagout
	Maximum Number of Padlocks	2
	Risk Type	Electrical Risk
Compatibility	Maximum Shackle Diameter	0.281 in
