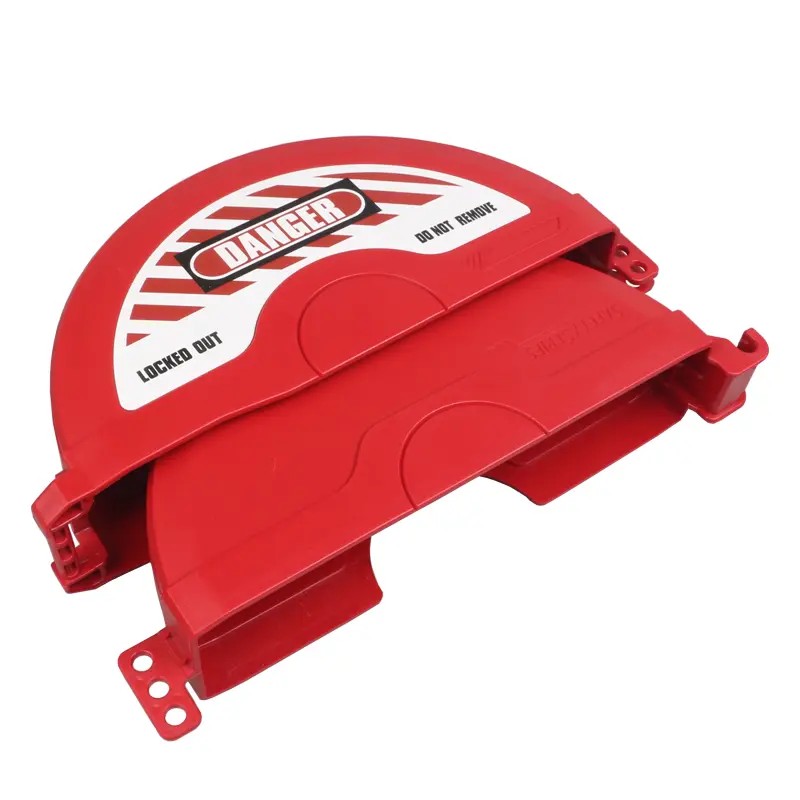

EP-F11A~EP-F15B

a.Made from imported DuPont engineering plastics.

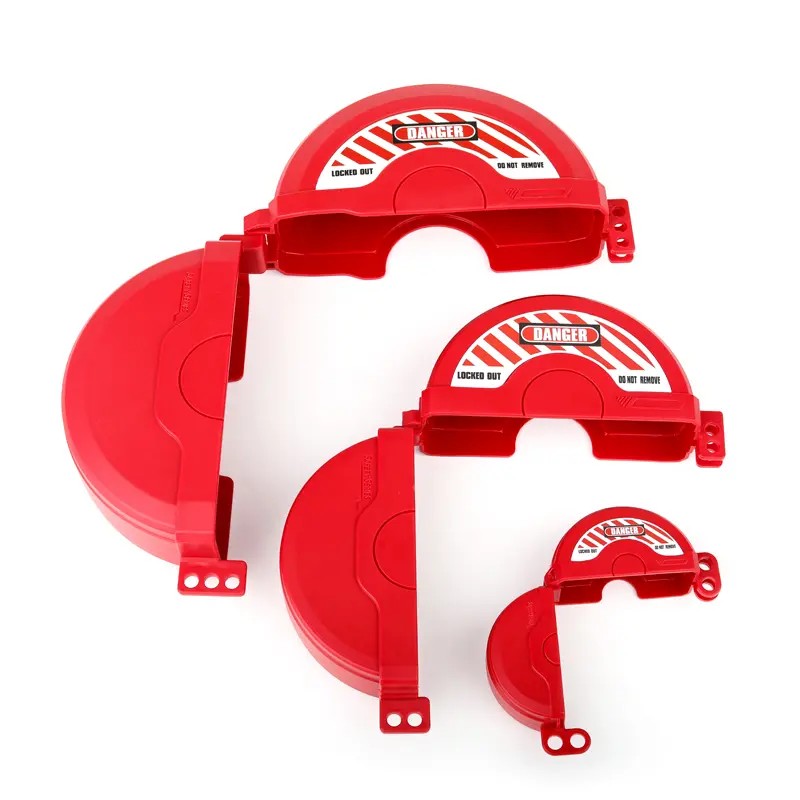

b.The different size semicircle design, two parts can be combined into one when storing and carrying, reduce a half volume. Lock the hand wheel diameter 25mm-450mm(1"-18") valve (as sheet description).
c.Locked by 4pcs padlocks, locked shackle diameter ≤7mm.
d.Color: red, other colors need to be customized. Tagout is available

Inquiry

Download

Product Description
Specification Parameters
Product Features
Related Products

Product Description

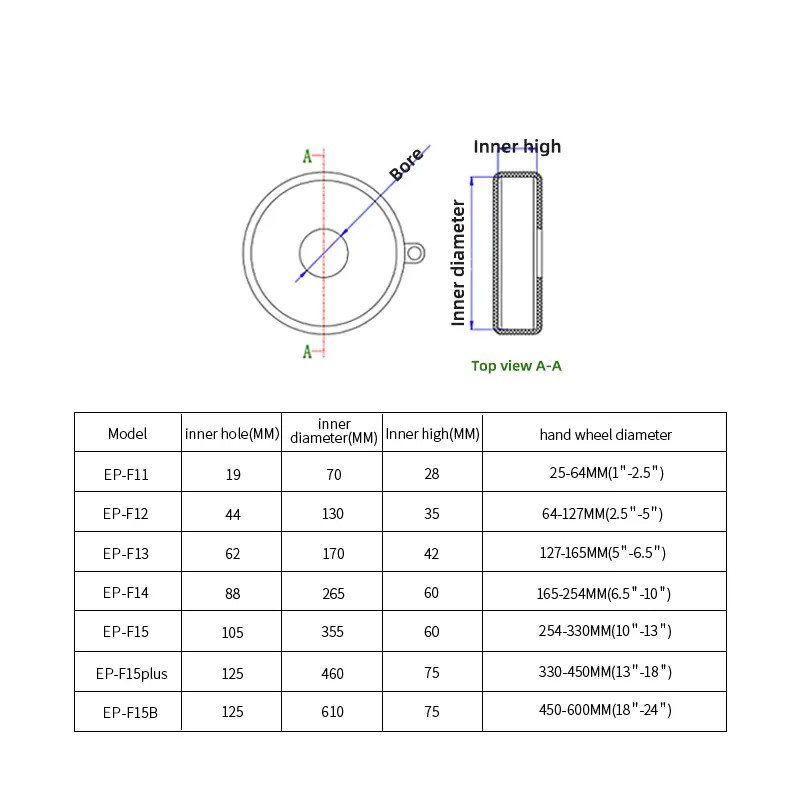

Part code	Description
EP-F11A	Valve rod diameter 25mm-64mm(1''-2.5'')
EP-F12A	Valve rod diameter 64mm-127mm(2.5''-5'')
EP-F13A	Valve rod diameter 127mm-165mm(5''-6.5'')
EP-F14A	Valve rod diameter 165mm-254mm(6.5''-10'')
EP-F15A	Valve rod diameter 254mm-330mm(10''-13'')
EP-F15 Plus	Valve rod diameter 330mm-450mm(13''-18'')
EP-F15B	Valve rod diameter 450mm-600mm(18''-24'')

Specification Parameters

Our gate valve lockouts are extremely rugged for superior impact and chemical resistance. They can easily withstand temperatures from -20°F to 300°F. Unique knockout center accommodates OS&Y or "rising stem" valves.

Lockouts accept locks with shackles up to 3/8" diameter. Danger labels in English, Spanish and French for choose.
