EP-D12

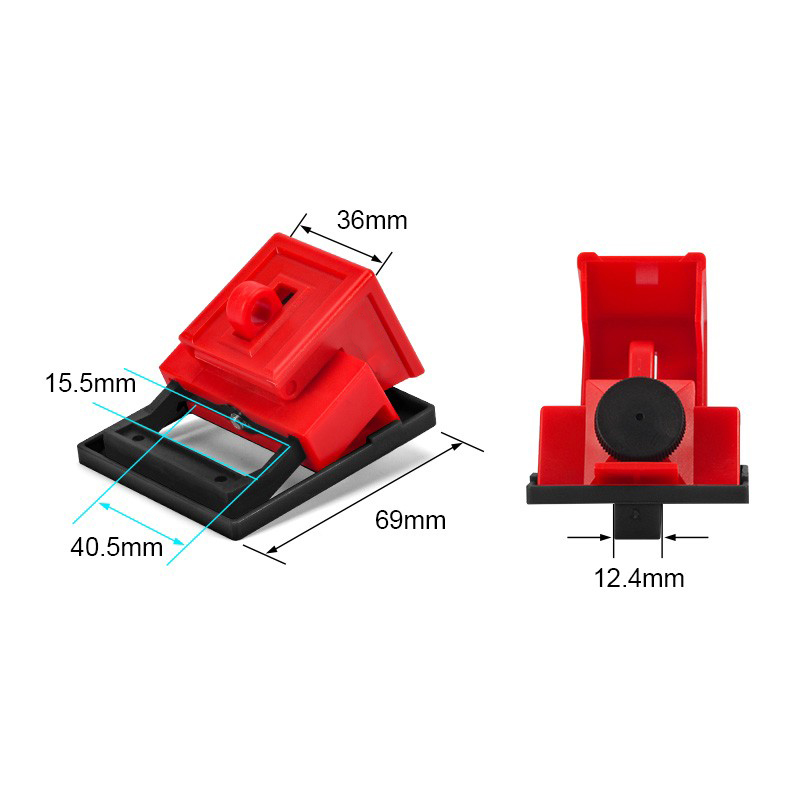

480 600 Volt Clamp-On Circuit Breaker Lockouts

Can lock handle width ≤42mm.

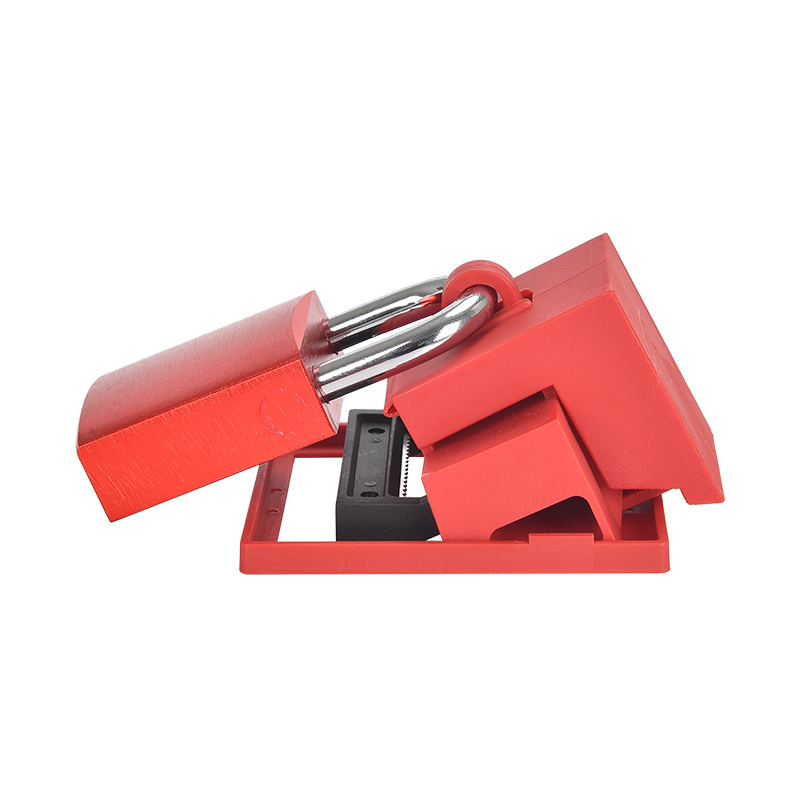

The lockouts can take padlocks with a shackle diameter up to 7mm.
Clamp-on breaker lockouts is to complete the locking of the handle of the circuit breaker equipment by means of screw tightening, realize the safety management of locking and tagging, and prevent accidental activation.

Inquiry

Download

Product Description
Specification Parameters
Product Features
Related Products

Product Description

Clamp-On Circuit Breaker Lockouts

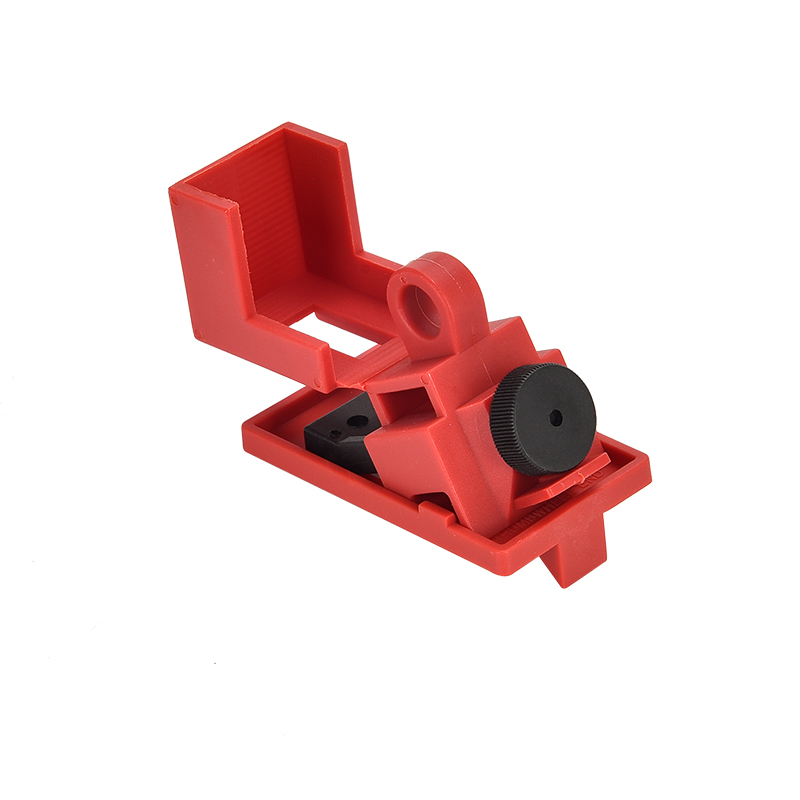

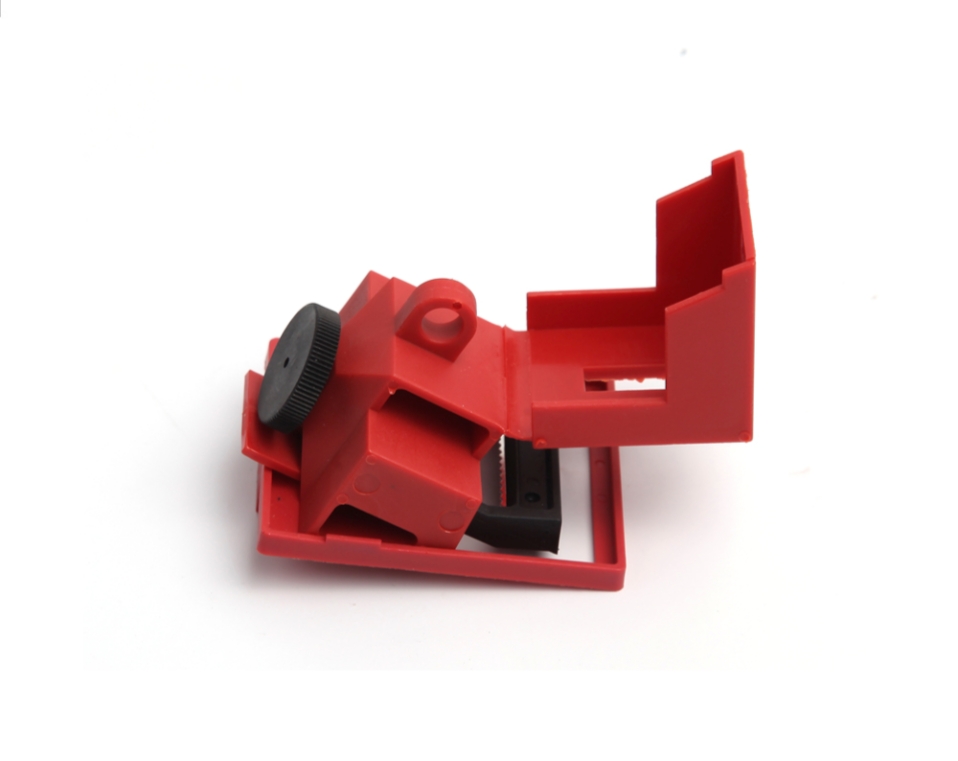

Clamp-on breaker lockouts are versatile and easy to install using the proprietary thumbwheel design – no screwdrivers needed!

Widely used – suitable for wide range of single-pole and internal-trip multi-pole breakers

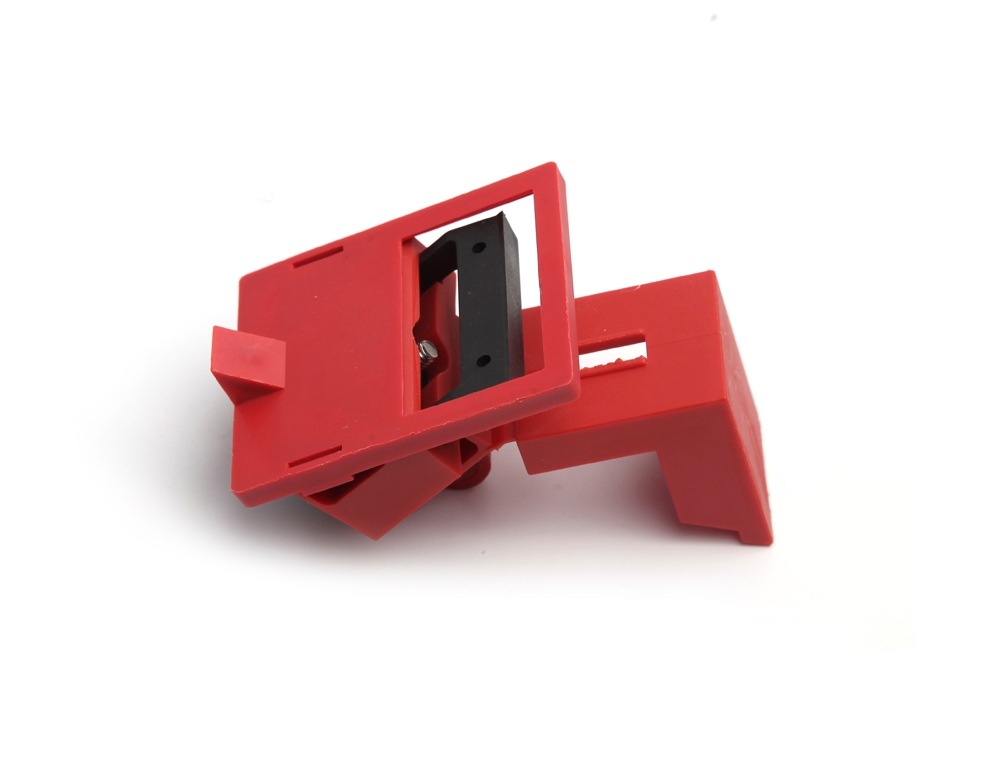

Detachable cleat (included) expands the range of applicable breakers

Clamp-on breaker lockouts is to complete the locking of the handle of the circuit breaker equipment by means of screw tightening, realize the safety management of locking and tagging, and prevent accidental operation.

Electrical lockout lockouts body and button part are made of reinforced nylon PA material with wear resistance, corrosion resistance, good insulation and temperature difference resistance (-50℃~+177℃).

The miniature circuit breaker lockouts do not require any installation tools! The lock body comes with a button buckle design, and the installation can be easily completed by manually pressing the button. And The lever-type circuit breaker lock uses a finger-turned first wheel for quick installation.

Suitable for a variety of single-stage, multi-stage and any miniature circuit breakers to protect employees from electrical accidents during equipment maintenance.

Specification Parameters

MODEL	DESCRIPTION
EP-D11	120/277V Clamp-On Breaker Lockouts
EP-D12	480/600V Clamp-On Breaker Lockout
EP-D13	device for 480/600V switches up to 2 1/4" wide and 7/8" thick.

Product Features

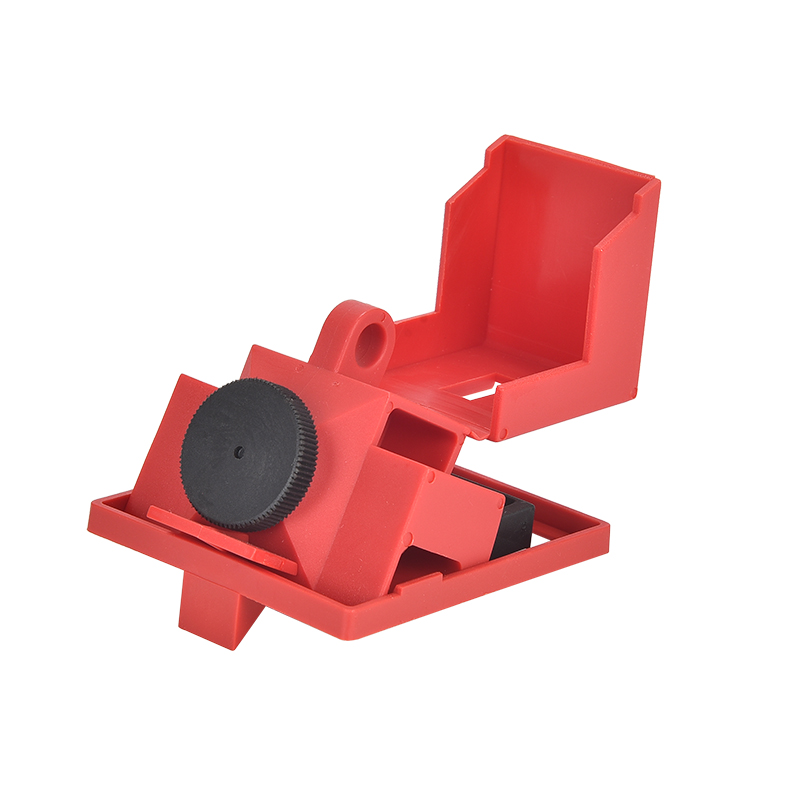

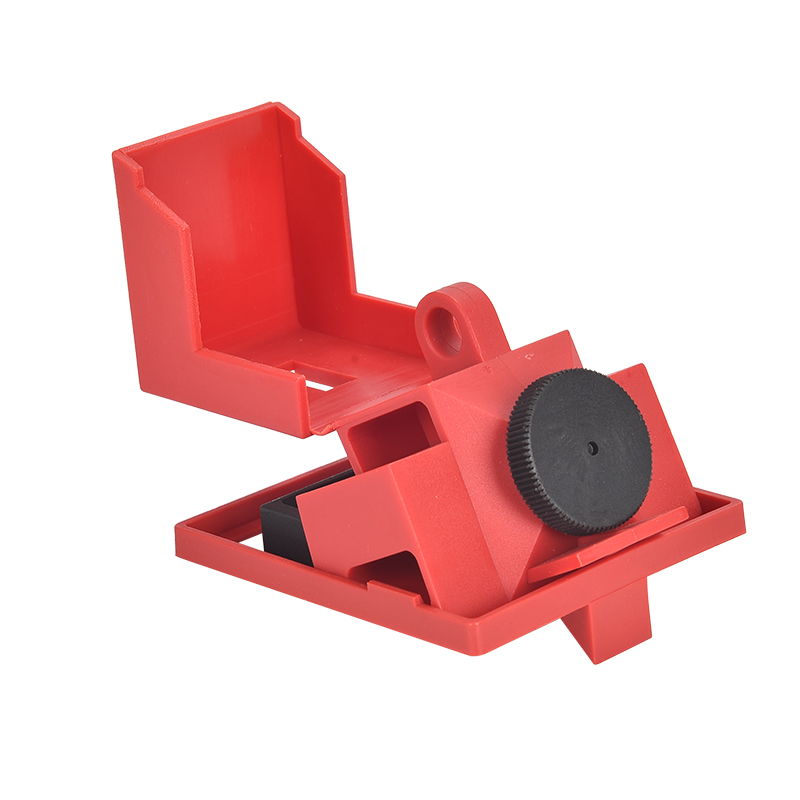

Use thumbscrew to clamp lockout securely onto switch tongue, then pull over and lock in place to prevent clamp from being loosened.
New blade design provides tighter grip with less torque on thumb screw.
Detachable cleats expand the range of applicable breakers.
The lockout can take padlocks with a shackle diameter up to 7mm.
