ELECTRIC HANDLE PANEL LOCKOUT

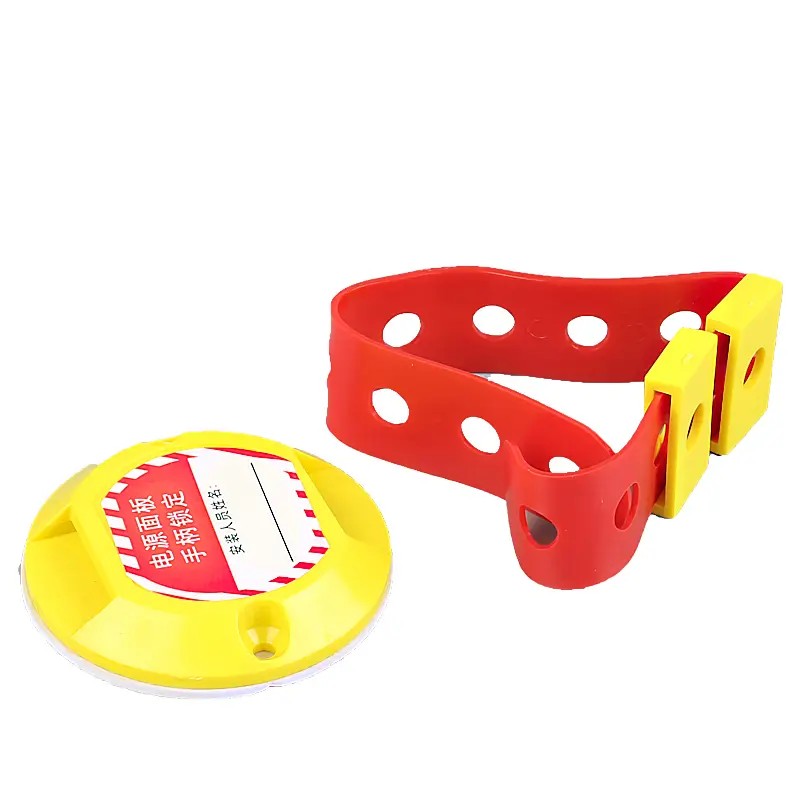

●Material-ABS base with steel or strong polypropylene strip.Electrical Handle
Lockout for electrical panel is made of four parts which is used to block the
movement of handles and lever installed at electric panel,is available with or
without lock.

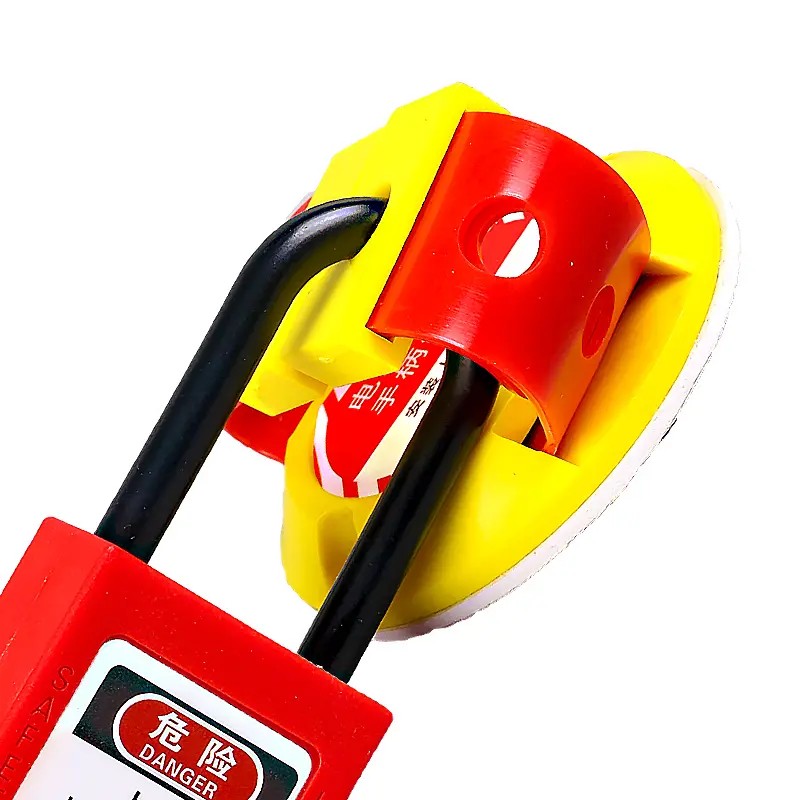

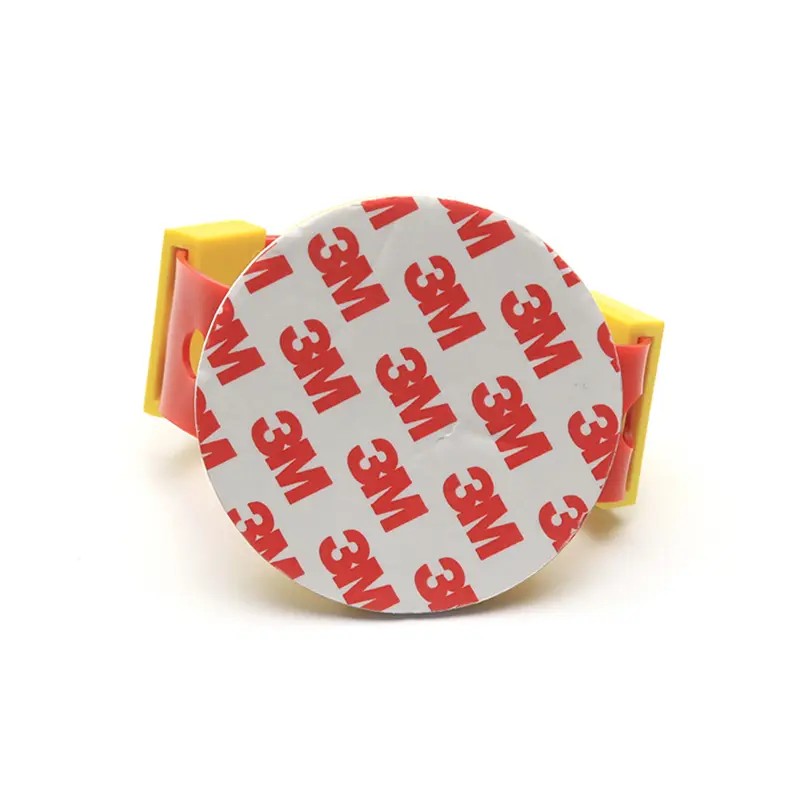

●Locking Slot-Two holes or strong adhesive at base part so that it can be sticked
solidly within some hour and also can be screwed for tight sticking on oily
surface and then locked by the padlock.
●Size of Base-Diameter is 59 mm,thickness 10 mm and size of slotter part is
25mm×18mm×7mm.

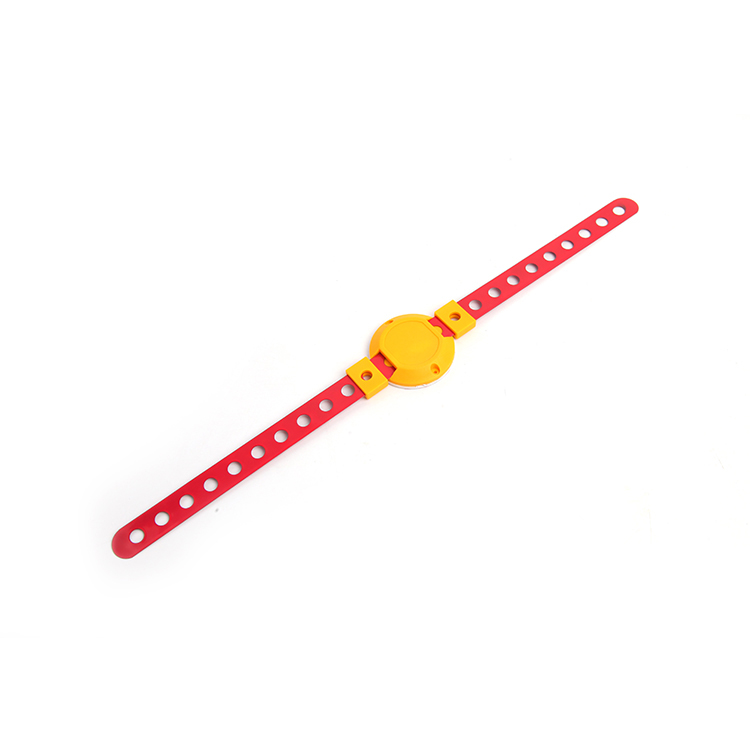

●Steel/Plastic grip with edge to edge length is 435mm,width 19mm,with multiple
holes of 9mm for group isolation purpose.
●Color-yellow Base with metal or plastic strip.
